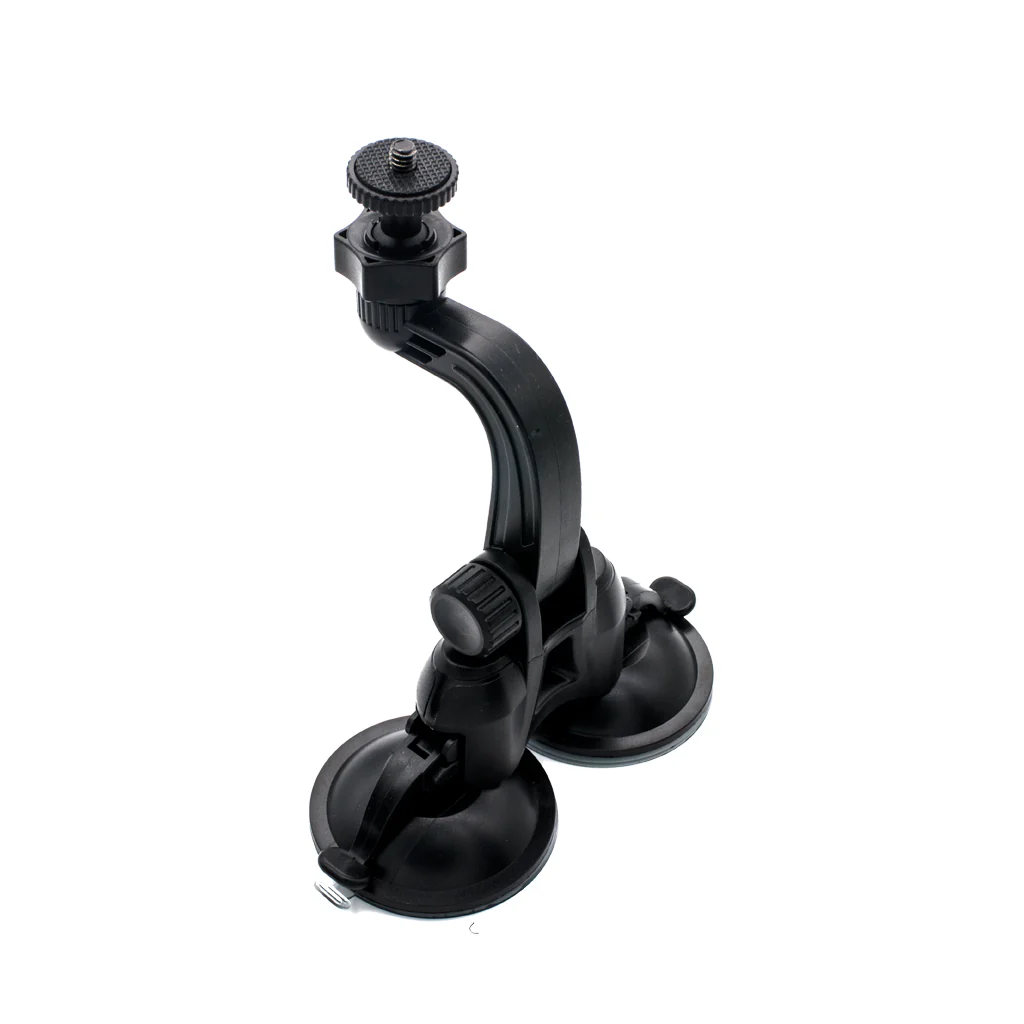

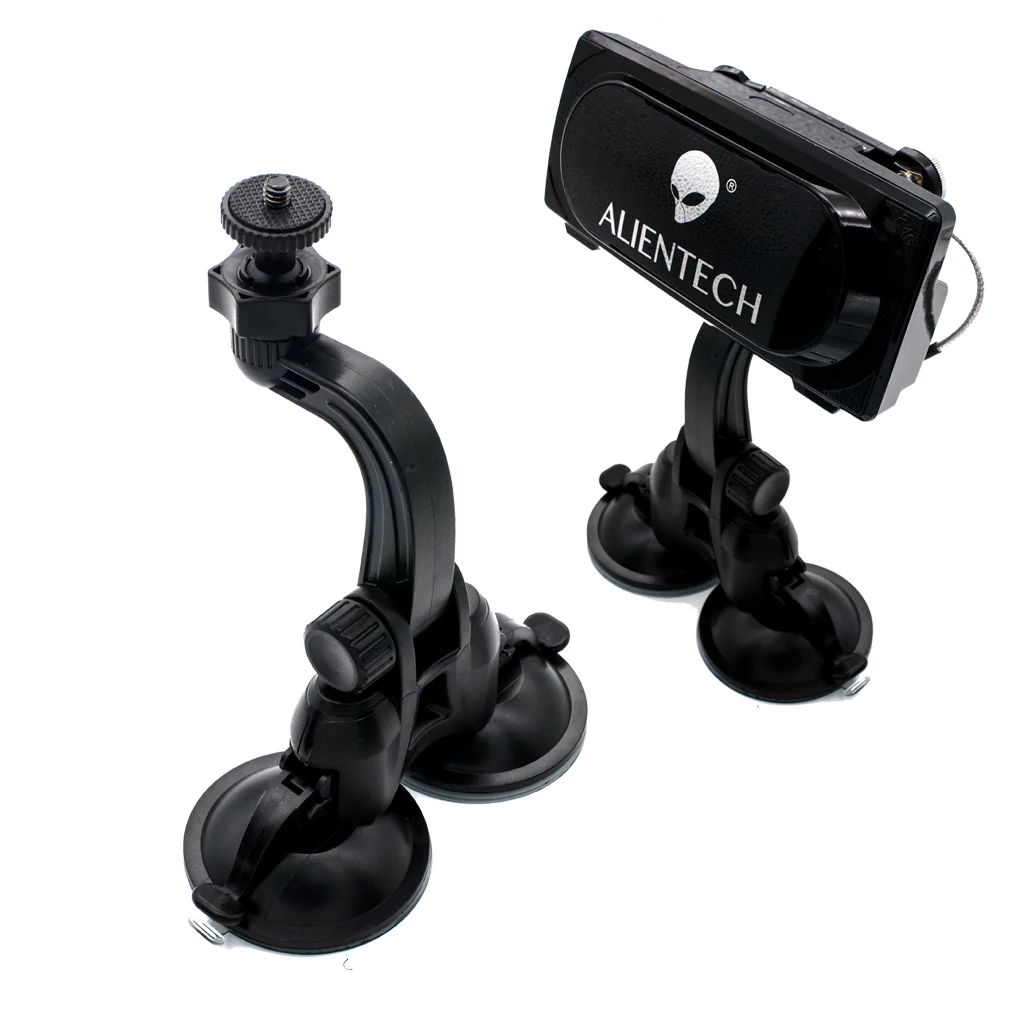

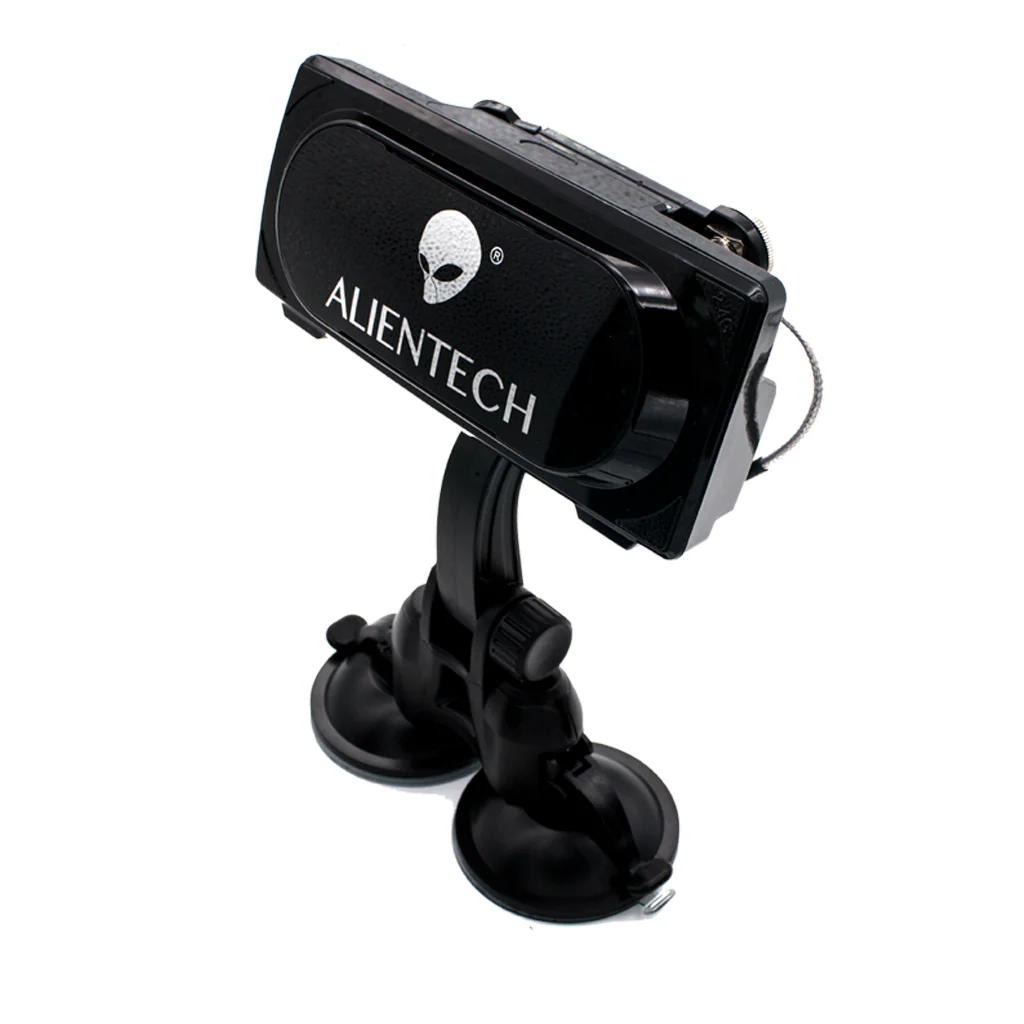

Extension coaxial cables / bracket with two suction cups which can be Fixed on the car roof for ALIENTECH antenna signal booster
Each cable assembly is 100% Tested for continuity & a dielectric withstanding voltage of 1500 Vrms
50 Ω impedance, rated for 4.0 GHz Max. / 500 V Max. / -40°C (-40°F) to 85°C (185°F)

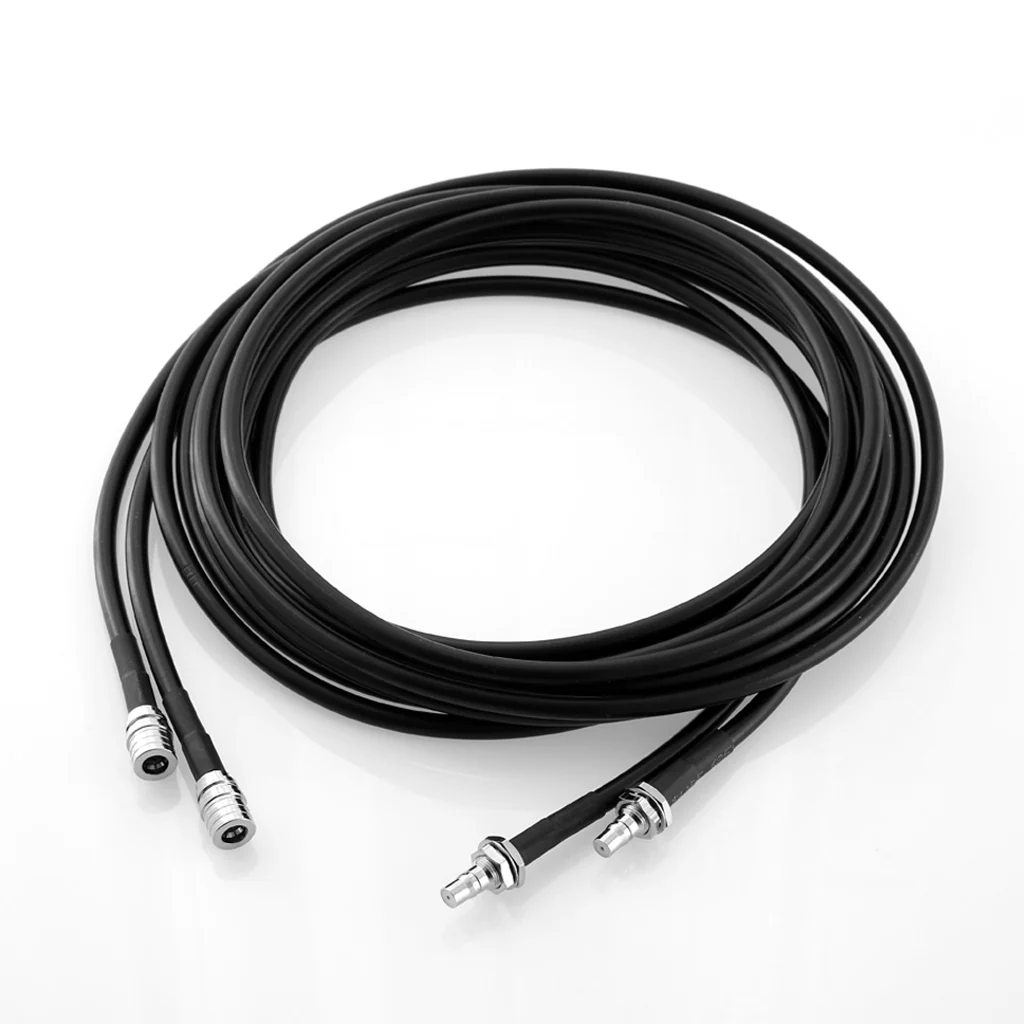

Cable Type: RG-223/U coaxial with black, non-contaminating, Type IIA PVC jacket (OD 0.212")
Connector A: BNC male straight plug with gold-plated contact & nickel-plated brass body (500 mating cycles)
Connector B: BNC male right angle (90°) plug with gold-plated contact & nickel-plated brass body (500 mating cycles)
Cable Length and Signal Loss
| 1 Meter: 2.4G=1.23dB 5.8G=1.8dB |
| 2 Meters: 2.4G=1.62dB 5.8G=2.4dB |
| 3 Meters: 2.4G=2.43dB 5.8G=3.6dB |
| 4 Meters: 2.4G=3.24dB 5.8G=4.8dB |
| 5 Meters: 2.4G=4.07dB 5.8G=6.01dB |
| 6 Meters: 2.4G=4.89dB 5.8G=7.2dB |
| 7 Meters: 2.4G=5.7dB 5.8G=8.4dB |
| 8 Meters: 2.4G=6.52dB 5.8G=9.6dB |
